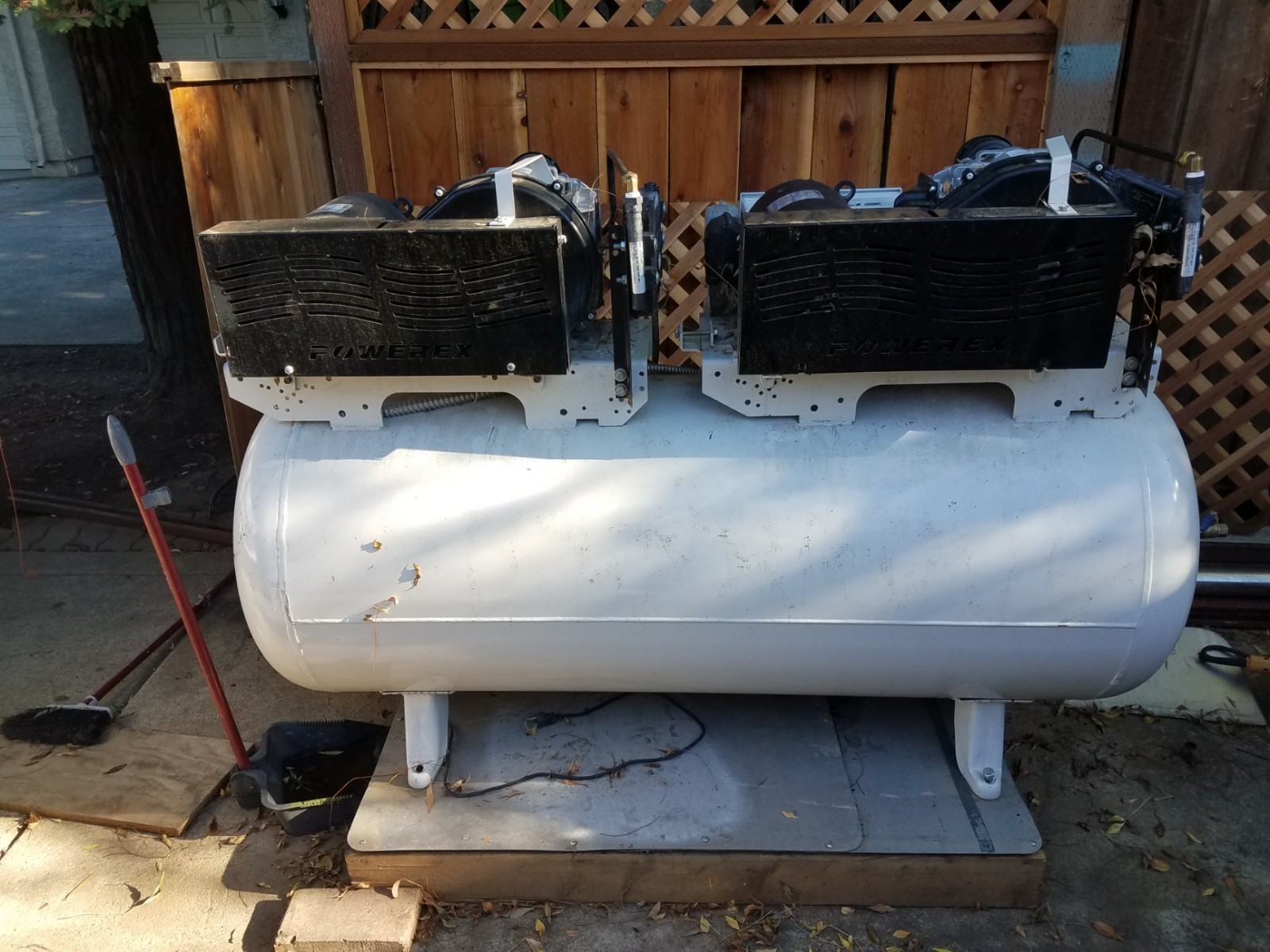

Powerex STD0504 Duplex 10hp(2x5hp)Oil Free Scroll Air Compressor, 30.4cfm@100psi

Cost when new: $16,023.00Powerex STD0504 Duplex 10hp (2x5hp) Oil Free Scroll Air Compressor, 30.4cfm@100psi 120 Gallon 3 PhaseThe Powerex STD0504 duplex 10hp oil free scroll air compressor utilizes (2) 5hp compressor pumps to displace 30.4cfm @ 100psi. This compressor runs on three phase power and is mounted on a 120 gallon horizontal air receiver. The Powerex Scroll tank mounted system is designed to provide clean, dry air for industrial applications where the quality of the compressed air is critical. The STD Series Powerex Duplex Air Compressors have been designed and tested to meet the most demanding

specifications for reliability in the pneumatic oil-free industry.The Powerex oilless rotary scroll air compressor has advanced scroll compressor technology through the development of a completely oilless unit. The Powerex Scroll Compressor offers a dynamically balanced air end which insures vibration-free operation. The rotary design permits a continuous 100% duty cycle. No oil separation, oil filtration, or inlet valves are required on the Powerex scroll compressor.STD0504 would be pre-wired in 208/230/460v 3 phase power prior to shipping depending on your buildings power. The 120 gallon receiver tank is ASME rated.The STD0504 10hp compressor is set at 116PSI.This compressor package is able to be configured in an array of different variants, including the potential to add a refrigerated dryer, desiccant dryer, aftercooler and more. Please contact our sales department to help tailor a compressor specific to your needs. Features STD0504Oil-less scroll pump technology: 100% oil free compressed airLess noise and vibration than comparable reciprocating piston compressorsEasy installation that maximizes floor spaceManufactured in ISO 9001:2015 certified facilitiesSLAE05E bare scroll compressor airend120 gallon horizontal ASME air receiverPre-installed and wired duplex compressor alternatorProducts

specificationsVoltage Frequency60HzTank Size120 GallonsWeight615 lbsSound Level75dBaPhaseThreeConfigurationHorizontalDrive StyleBelt DriveConnection Size1/2" NPTVoltage208/230/460 / Tri VoltageCFM @ 100 PSI30.4Max Pressure (PSI)116, 145CFM @ 145 PSI25Horse Power10Dimensions78" x 28" x 45"H
