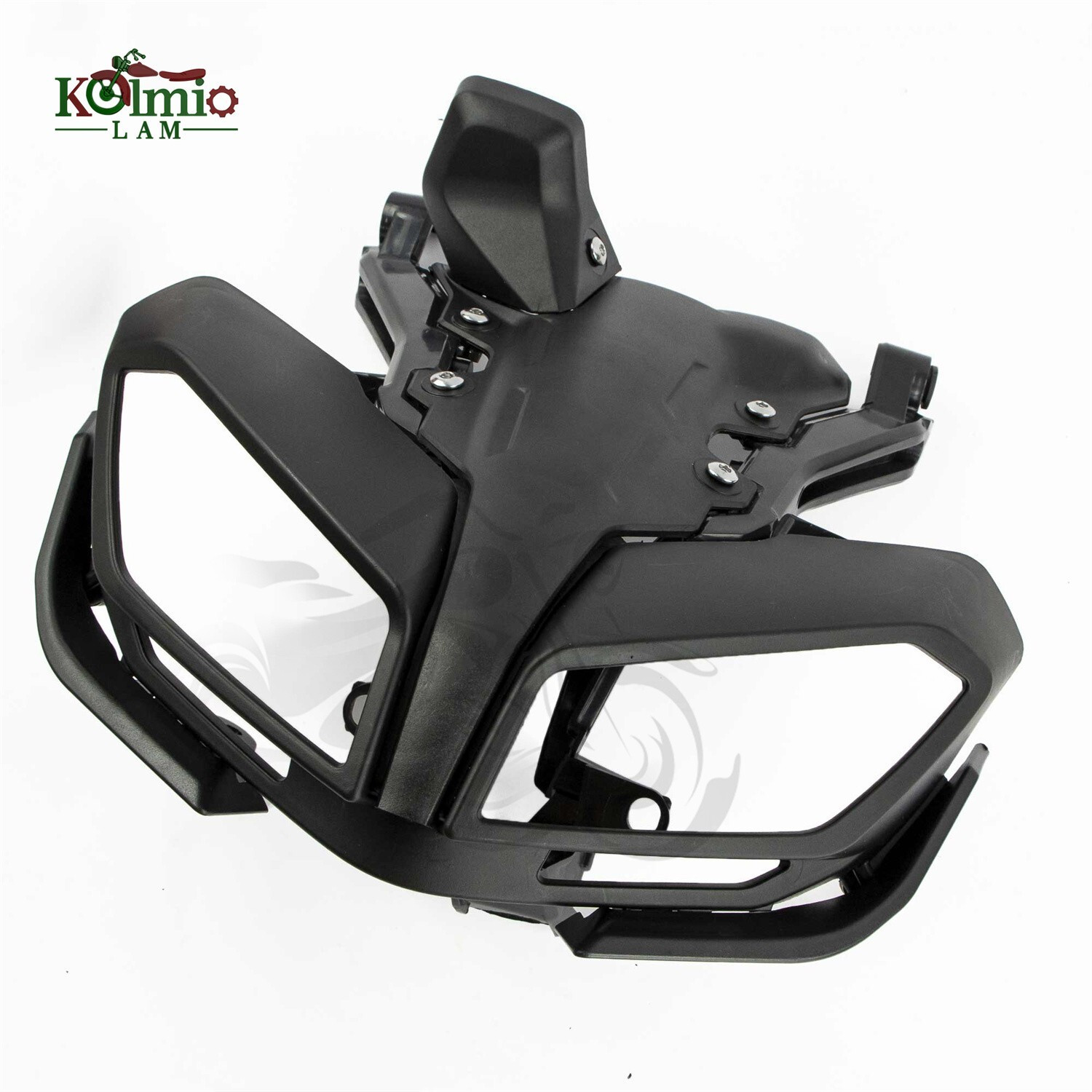

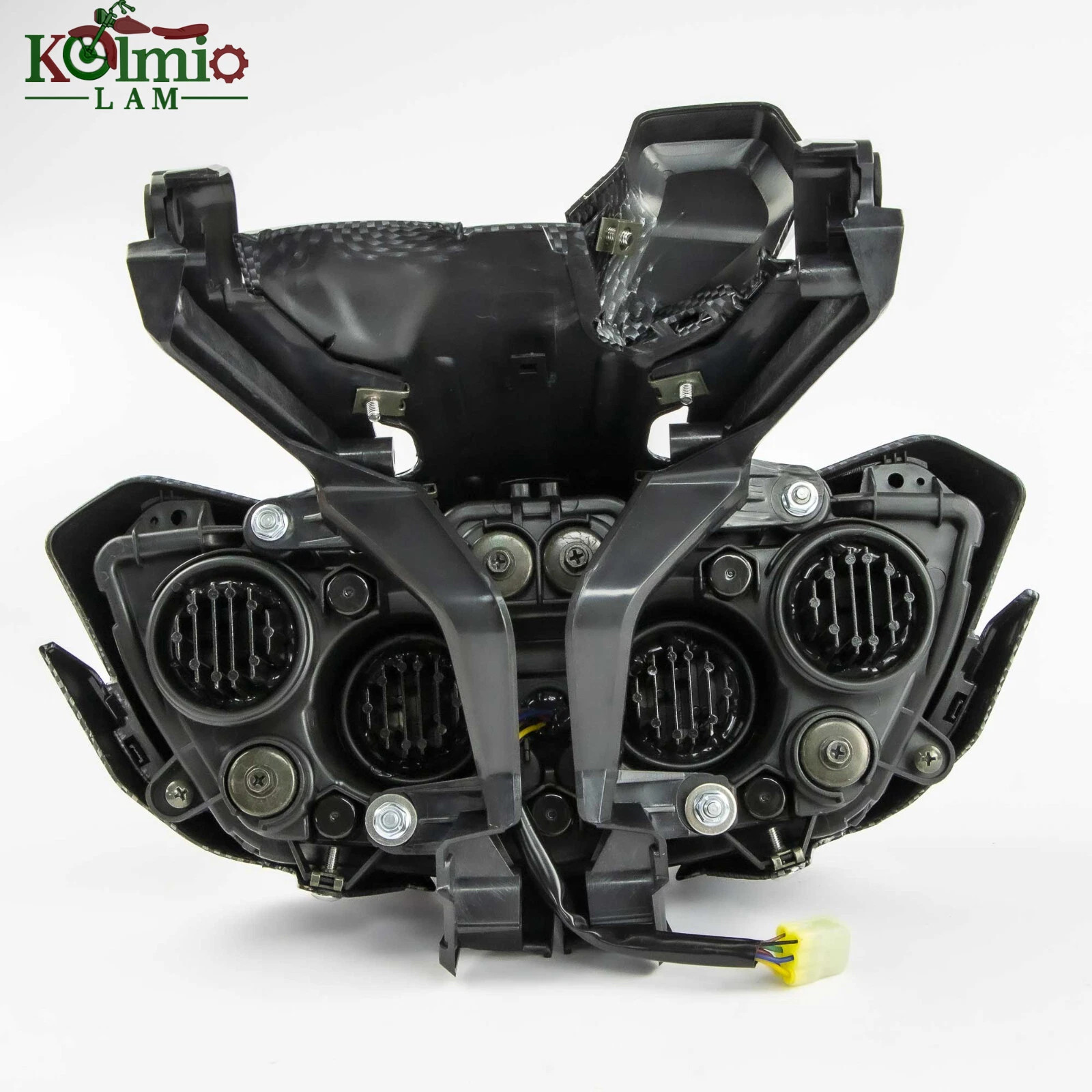

Fit For Yamaha MT09 FZ-09 2013-2016 Motorcycle Headlight Assembly Housing Mirror

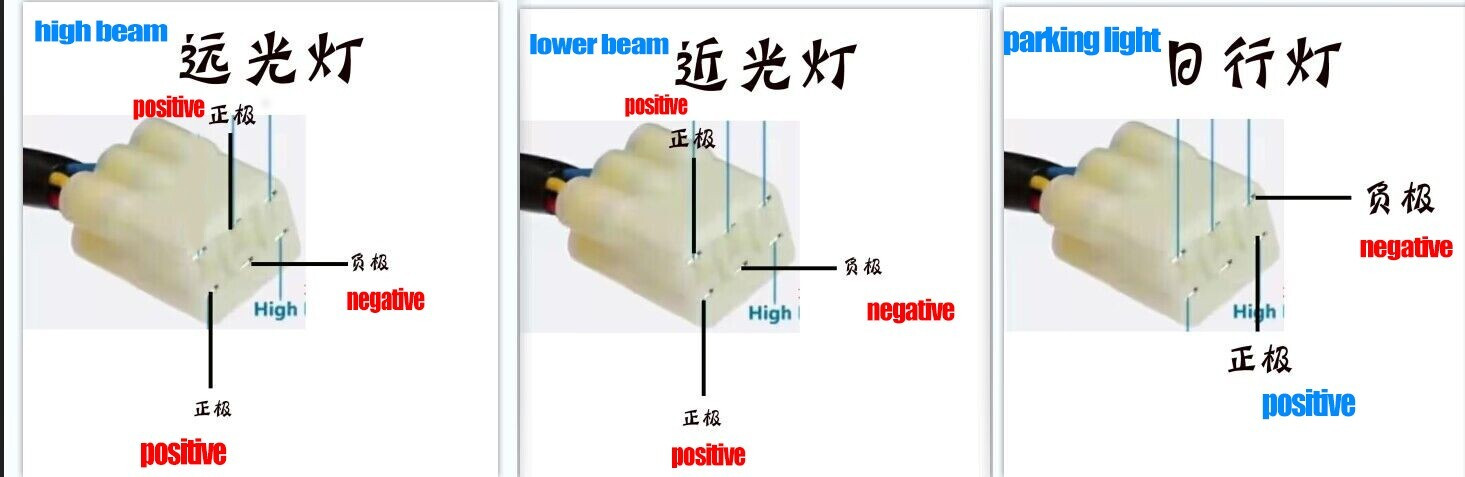

Please Ensure Your Motorcycle is in the our compatibility.Headlight Head Light Lamp Assembly Fit For YAMAHA MT09 FZ09 2013-2016Description:Conditon:Aftermarket 100% NewHigh class quality and Good Working ConditionNo Instruction IncludedFitment:YAMAHA MT09 FZ09 2013-2016New headlamp 6-wire plug → The box is equipped with two relays, one relay is connected to the high beam lamp, and the other relay is close to the light lamp → connect the 4-wire plugMT09 2017 Headlight Line Corresponding Functions:Position light: black (negative)+brown (positive)Middle two lights: red (positive)+green(negative)+blue (negative)All 4 lights are on: red (positive)+green(negative)+blue (negative)+yellow (negative)Among them, (Low beam, turn light, daytime running light) is connected to the negative pole of the original vehicleThe other line is connected to the high beam signal control lineNote: Before renovating the headlights, find a professional technician to install them, especially those who understand electrical wiring!Package included:1 x Headlight Set(as picture showed) Note1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need. 2.Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm) 3.The

color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding .dc_tracker_img:last-of-type p:empty+hr hr+span.ebay,hr+*>span.ebay
