Large Grid Permanent Magnetic Chuck 16in×24in Strong Grinding Machine Magnetic C

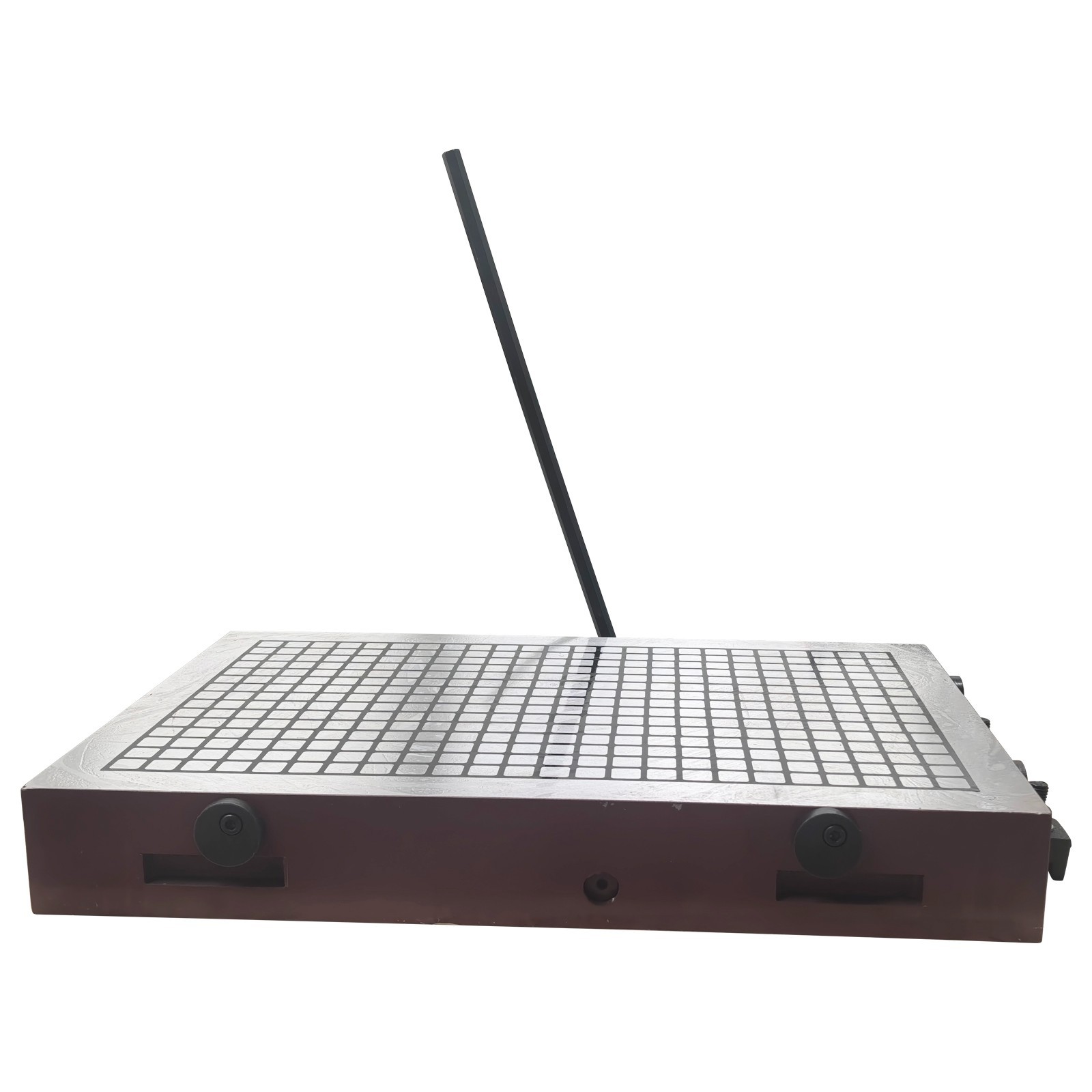

CNC Magnetic Chuck 16’’x24’’x3’’Product OverviewThe CNC magnetic chuck is a magnetic fixture for various surface grinding machines and tool grinding machines, is used for fixing different workpieces through the magnetic field force and is suitable for the machining scenarios of milling, grinding, cutting and so on.Product ParametersProduct size15.75’’x23.62’’x3.15’’ (40x60x8cm)MaterialN45 high-performance neodymium iron boron magnetsSuction≥200N/c㎡Net weight130KG (287LB)Product Features1. Ultra-high magnetism. Adopts super-strong suction, can overlay the magnetic force and can be used for strong milling and drilling.2. High-performance magnets, free of demagnetization. The N45 high-performance neodymium iron boron magnets are adopted, and the magnetic force cannot be lowered.3. Large grid design. Adopts the 18x18mm grid design to achieve ultra-strong magnetism.4. Environmental protection and safety. The magnetic force is generated by high-performance materials. Free of time limit, energy consumption and heat generation, environmentally friendly, safe and easy to operate.5. Free of power supply. Simple mechanical switching, free of power consumption and avoids the phenomena that due to the sudden power failure, the magnetic force disappears, and the workpiece falls off. Unique Black Square DesignThe unique black square design is adopted to achieve strong clamping operation, multiple 18x18mm grids are assembled, the clamping requirement of the machining center for workpieces is fully met, the clamping speed can be remarkably improved, and the magnetism is constant and uniform. Mechanical Switching DesignThe magnetic chuck adopts the mechanical switching design, operation and installation are easy and convenient, no power supply is required, the risk that the workpiece drops due to the sudden power failure can be thoroughly eliminated, and the safety is greatly improved. High-performance MaterialsThe magnetic chuck is made of high-performance materials, epoxy resin is poured into grooves between magnetizers, and matrix type rare earth magnetic steel is distributed at the periphery of the magnetizers and the moving frame assembly. The magnetism can be constant and uniform, and demagnetization can be avoided. Matrix Magnetic PolesThe magnetic poles are combined to form a matrix, magnetic bundles are perpendicular to each other and are closely interwoven, thin plates with the thickness of being larger than or equal to 2MM can be attracted to be milled and ground, the practicability and stability are obviously improved, and the application range is broader. Operation Method1. Place the workpiece on the workbench of the magnetic chuck, insert the lever into the shaft hole to rotate by 180 degrees in the clockwise direction so as to attract the workpiece.2. After finishing machining operation, insert the lever into the shaft hole to rotate by 180 degrees in the counterclockwise direction so as to take down the workpiece.Attention1. Before use, the surface of the magnetic chuck should be wiped clean to avoid forming scratches and affecting the precision. The surface should be coated with oil to prevent rusting and corrosion after the magnetic chuck is used.2. The use environment temperature is -40°C ~50°C.3. Do not knock on the magnetic chuck so as to avoid the magnetism reduction.ApplicationThe CNC powerful magnetic chuck has high precision and stability and does not rely on the power supply, is suitable for quick clamping and can be widely applied to the metal processing and machine tool industry, the die making industry, the machinery and energy industry, the precision part manufacturing industry, the automatic production industry and so on.Item Number (170160): 1 x Magnetic Chuck 16’’x24’’
