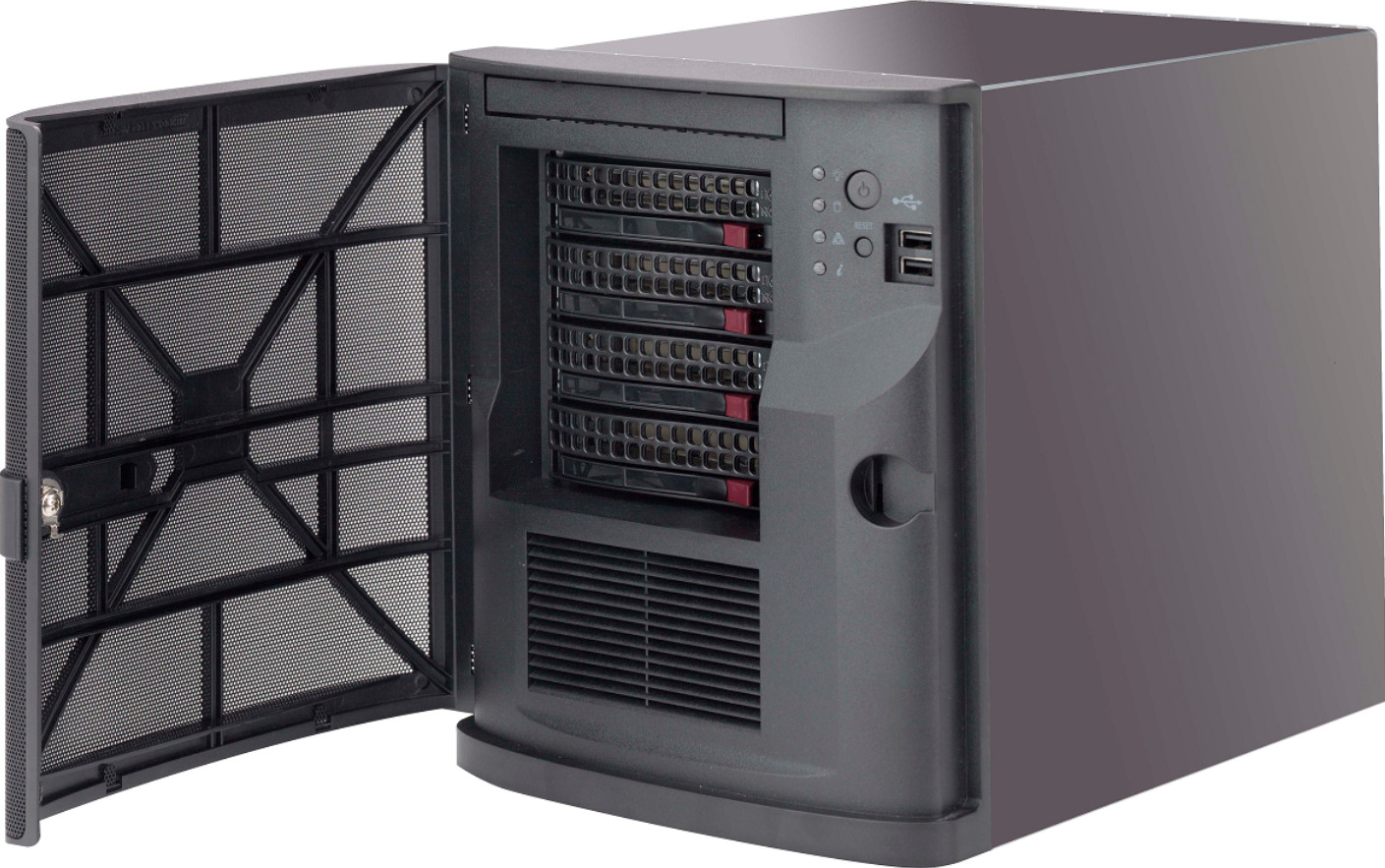

SuperMicro CSE-721TQ-350B2 Mini-tower chassis w/ 4x 3.5 HDD tray, PWS and BPN
Check the listing for details.
| Location | San Jose US |
| Shipping | Free shipping (check listing for details) |
| Seller |
tm_space
99.8% positive · 21654 feedback
|
| Listing | FixedPrice · Active |
| Start time | 2021-09-21T22:15:33.000Z |
| Type | Chassis |
| MPN | CSE-721TQ-350B2 |
| Brand | SUPERMICRO |
Form Factor Compact Mini-Tower Chassis for motherboard support size: (6.75" x 6.75") Dimensions Height 9.45" (240.03 mm) Width 8.27" (210.06 mm) Depth 11" (279.4 mm) Net Weight 13.5 lbs (6.12 kg) Gross Weight 15 lbs (6.8 kg) Packaging (W x H x L) 12.4" (315 mm) x 13.78" (350 mm) x 16.14" (410 mm) Available Color Black Expansion Slots 1 low-profile expansion slot(s) Drive Bays 4 x 3.5" hot-swap SAS/SATA2 x 2.5" fixed drive bay Backplane 4x3.5" SAS2/SATA3 backplane w/SES-II Peripheral Drives 1 x slim DVD-ROM drive bay Front Panel Buttons Power On/Off buttonSystem Reset Button LEDs 1 Network Activity LEDsFan Fail/System Over Heat LEDHDD activity LEDPower Status LED Ports 2x USB 3.0 Port(s) Systems Cooling Fans 1 x 12cm rear exhaust fan(s) System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 0°C - 40°C (32°F - 104°F) Non-Operating Temperature Range -20°C - 60°C (-4°F 140°F) Operating Relative Humidity Range 10% - 85% (non-condensing) Non-Operating Relative Humidity Range 10% - 95% (non-condensing) Power Supply 350W 1U multi-output power supply Total Output Power and Input 350W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 150 x 81.5 x 40.5 mm Output Type 24pin ATX -12V Max: 0.3A / Min: 0.05A +12V Max: 28A / Min: 0.1A (100Vac - 240Vac) +5V Max: 15A / Min: 0.2A +3.3V Max: 10A / Min: 0.1A +5Vsb Max: 2A / Min: 0.05A Certification Gold Certified BSMICCCFCC class BTUV/CBUL/CB Regulatory (Power Supply) Power Supply Safety / EMCProduct SKUs CSE-721TQ-350B2 SuperChassis 721TQ-350B2
