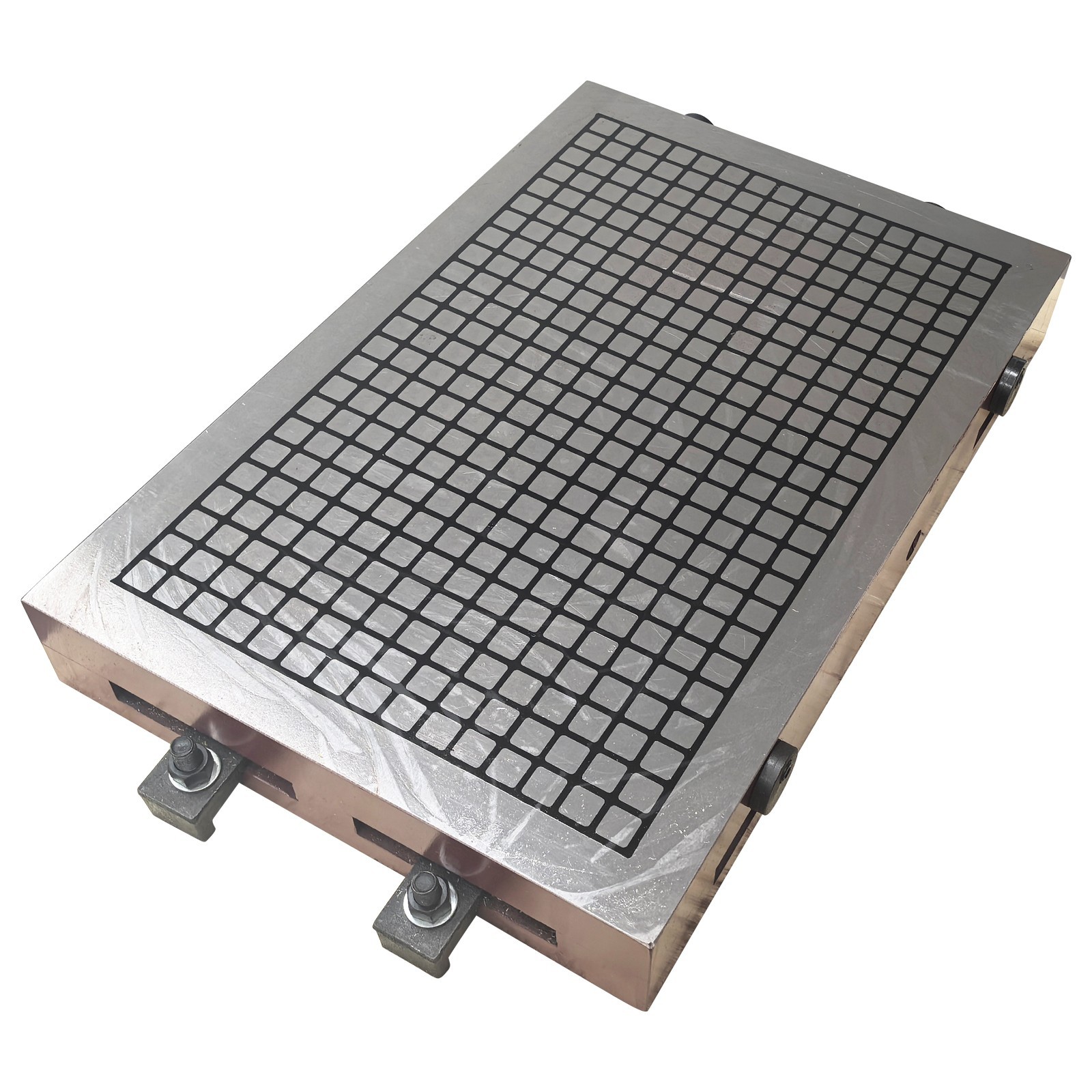

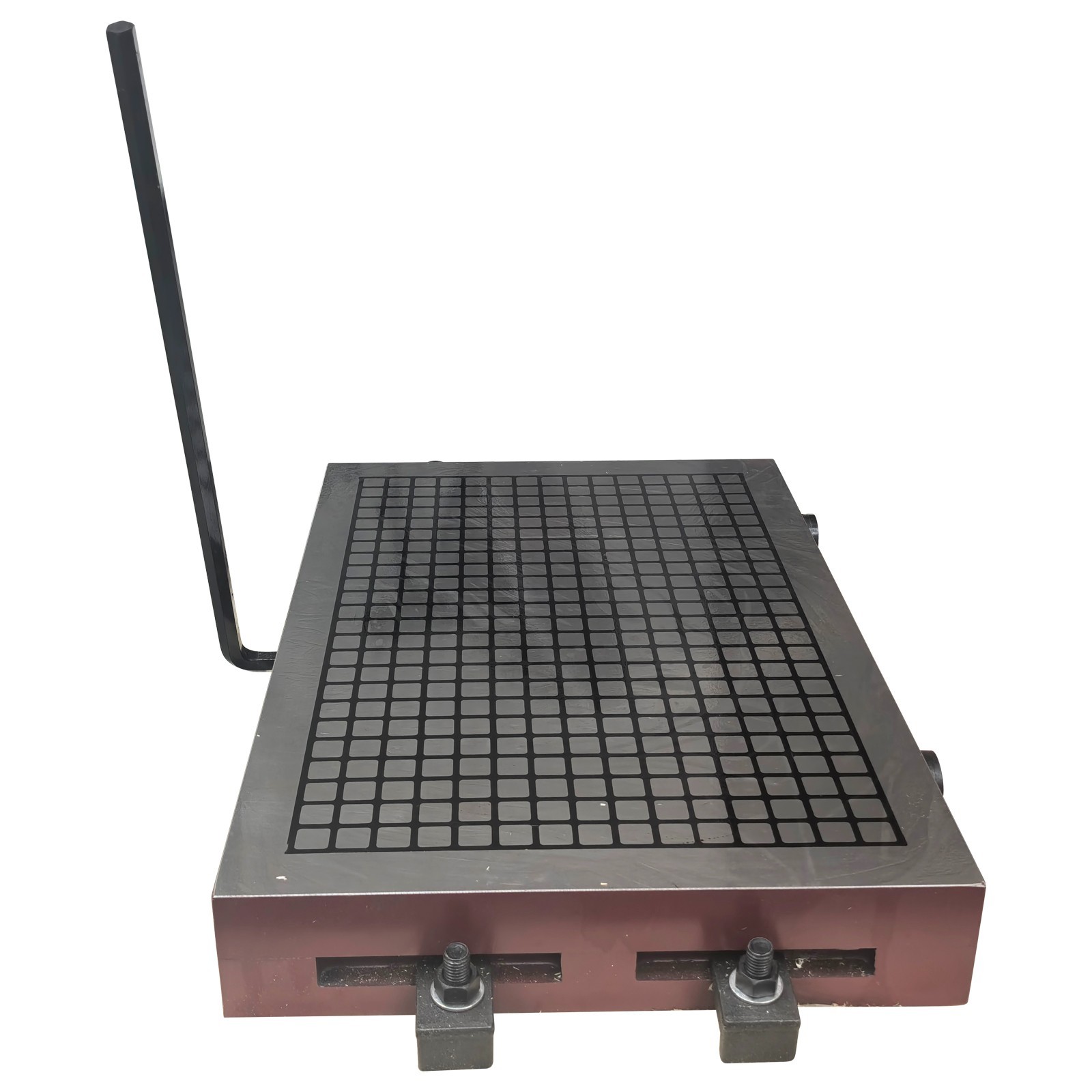

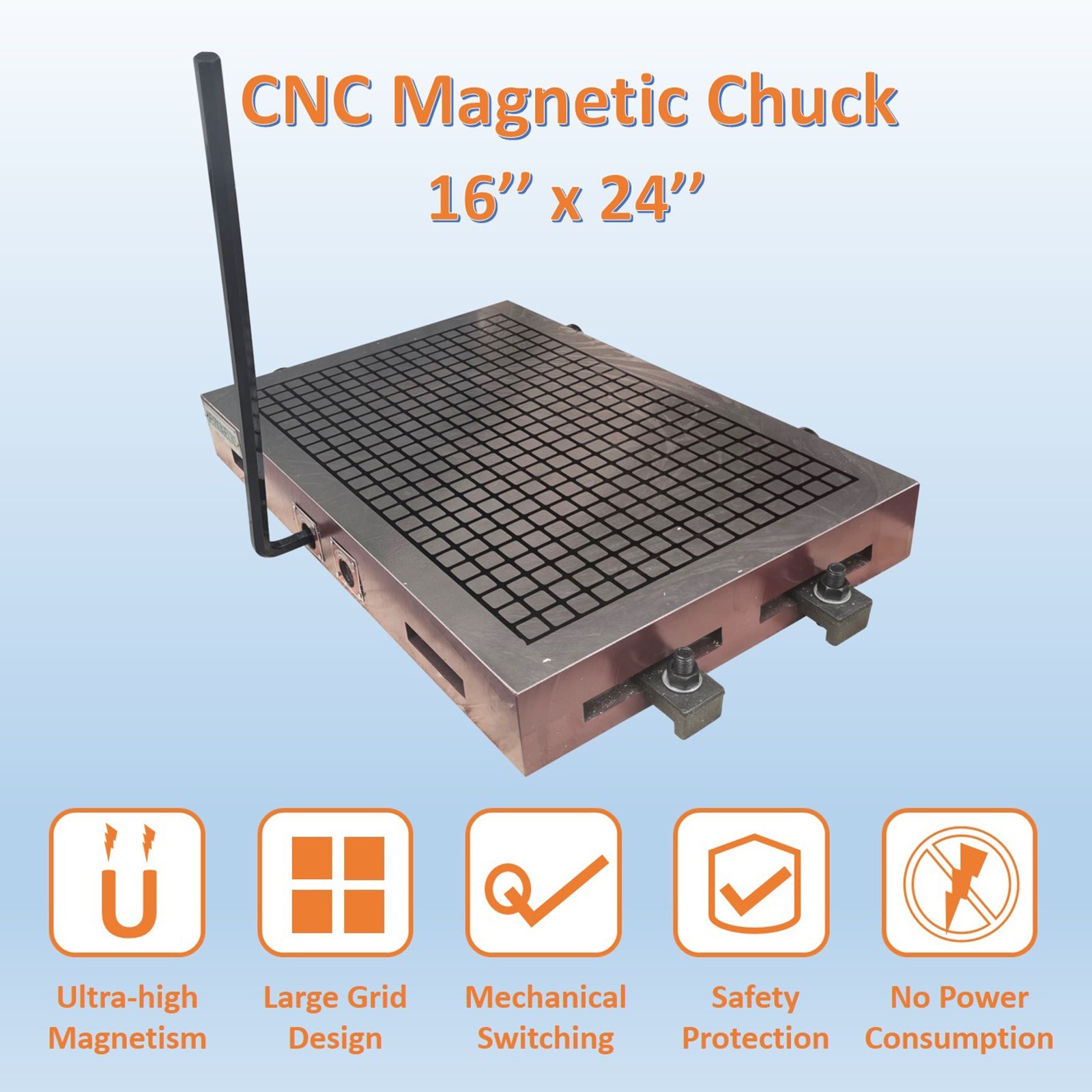

16*24in CNC Superhigh Magnetism Grinder Chuck Heavy Super Strong Magnetic Chuck

CNC Magnetic Chuck 16’’x24’’x3’’ Product Overview The CNC magnetic chuck is a magnetic fixture for various surface grinding machines and tool grinding machines, is used for fixing different workpieces through the magnetic field force and is suitable for the machining scenarios of milling, grinding, cutting and so on. Product Parameters Product

size 15.75’’x23.62’’x3.15’’ (40x60x8cm)

Material N45 high-performance neodymium iron boron magnets Suction ≥200N/c㎡ Net weight 130KG (287LB) Product Features 1. Ultra-high magnetism. Adopts super-strong suction, can overlay the magnetic force and can be used for strong milling and drilling. 2. High-performance magnets, free of demagnetization. The N45 high-performance neodymium iron boron magnets are adopted, and the magnetic force cannot be lowered. 3. Large grid design. Adopts the 18x18mm grid design to achieve ultra-strong magnetism. 4. Environmental protection and safety. The magnetic force is generated by high-performance materials. Free of time limit, energy consumption and heat generation, environmentally friendly, safe and easy to operate. 5. Free of power supply. Simple mechanical switching, free of power consumption and avoids the phenomena that due to the sudden power failure, the magnetic force disappears, and the workpiece falls off. Unique Black Square Design The unique black square design is adopted to achieve strong clamping operation, multiple 18x18mm grids are assembled, the clamping requirement of the machining center for workpieces is fully met, the clamping speed can be remarkably improved, and the magnetism is constant and uniform. Mechanical Switching Design The magnetic chuck adopts the mechanical switching design, operation and installation are easy and convenient, no power supply is required, the risk that the workpiece drops due to the sudden power failure can be thoroughly eliminated, and the safety is greatly improved. High-performance Materials The magnetic chuck is made of high-performance materials, epoxy resin is poured into grooves between magnetizers, and matrix type rare earth magnetic steel is distributed at the periphery of the magnetizers and the moving frame assembly. The magnetism can be constant and uniform, and demagnetization can be avoided. Matrix Magnetic Poles The magnetic poles are combined to form a matrix, magnetic bundles are perpendicular to each other and are closely interwoven, thin plates with the thickness of being larger than or equal to 2MM can be attracted to be milled and ground, the practicability and stability are obviously improved, and the application range is broader. Operation Method 1. Place the workpiece on the workbench of the magnetic chuck, insert the lever into the shaft hole to rotate by 180 degrees in the clockwise direction so as to attract the workpiece. 2. After finishing machining operation, insert the lever into the shaft hole to rotate by 180 degrees in the counterclockwise direction so as to take down the workpiece. Attention 1. Before use, the surface of the magnetic chuck should be wiped clean to avoid forming scratches and affecting the precision. The surface should be coated with oil to prevent rusting and corrosion after the magnetic chuck is used. 2. The use environment temperature is -40°C ~50°C. 3. Do not knock on the magnetic chuck so as to avoid the magnetism reduction. Application The CNC powerful magnetic chuck has high precision and stability and does not rely on the power supply, is suitable for quick clamping and can be widely applied to the metal processing and machine tool industry, the die making industry, the machinery and energy industry, the precision part manufacturing industry, the automatic production industry and so on. Item Number (170160): 1 x Magnetic Chuck 16’’x24’’ Shipping & Handling Details Default Shipping Cost or Free Shipping Information: ▲Default shipping cost or free shipping service is only for the lower 48 United States by UPS Ground or USPS. Other areas or needs other shipping ways, please contact us. ▲Buyers from Guam, Puerto Rico, Virgin Islands, American Samoa, Alaska, Hawaii, PO Boxes, APO/FPO addresses or other countries/areas, there WILL be extra shipping costs, please contact us for more detailed information. ▲Please make sure your address is valid for both UPS and USPS services. Any costs incurred because of incorrect or undeliverable address should be undertaken by buyer. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays. Sales tax / Customs duties: Any sales taxes or Customs duties are not included. If came out, they must be undertaken by the buyer. Sales Tax of 8% will be applied for orders shipped within the state of California. Damage In Shipping: Email or call us First! We will work with you to get the case resolved in the fastest method. Return / Refund If you are not 100% happy with your purchase, please contact Us. Please don't directly opened a request or case without informing us, or else, we will do some discounts on the warranty and other sales-services later on. Hope for your understanding.Returns & Exchanges ▲All returns must be made within 14 days of delivery date. Items must be in new, unused condition, with all original materials included with the shipment. A partial refund may be applied for opened or damaged items, depending on the condition. ▲Items returned under the buyer’s remorse: The return shipping fee must be covered by the buyer; The original shipping cost will also be deducted from the refund. 15% restocking fee of the items purchase price will be charged. ▲Returns that are the result of our seller's error: Buyer will receive a full refund of the item as well as shipping charges. ▲All returns require a RA (Return Authorization) number that will be given by our seller. Please contact with us at first for more details. Defective & Damaged Products ▲If product was received damaged or not as described, please send us some pictures or videos, so we could well understand your problem, then solve them for you ASAP. Besides, it's much helpful for us to claim with UPS, remind our related department to pay much more attention to packaging later on. Hope for your understanding. ▲Replacement or refund of defective or damaged products can only be returned in exchange for the exact same product, or else, the purchase price will be refunded back to your original payment method. ▲If an item is received damaged, customer service must be contacted within 7 days of receiving your item.All returns require a RA (Return Authorization) number as above. Payment eCheck Issues: Payments via eCheck do not clear immediately. Usually you will wait 5-7 days after checkout for it to clear. Then we will arrange shipments for you. Warranty & Feedback ▲6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost. ▲Any warranty shipping cost to us is responsible by buyer. ▲Any shipping cost to buyer is responsible by the seller. ▲We committee to the customer satisfaction and want to bring you the best purchase experience. If there is any problems, please contact us ASAP. If not, please leave us a positive feedback as it's very important for us. Thanks very much. .dc_tracker_img:last-of-type p:empty+hr hr+span.ebay,hr+*>span.ebay
