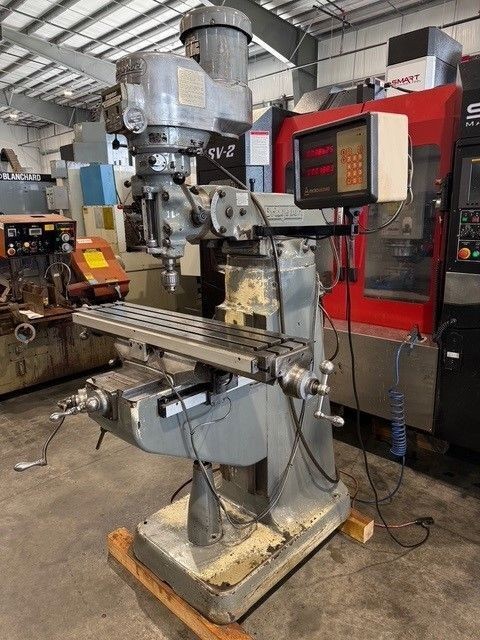

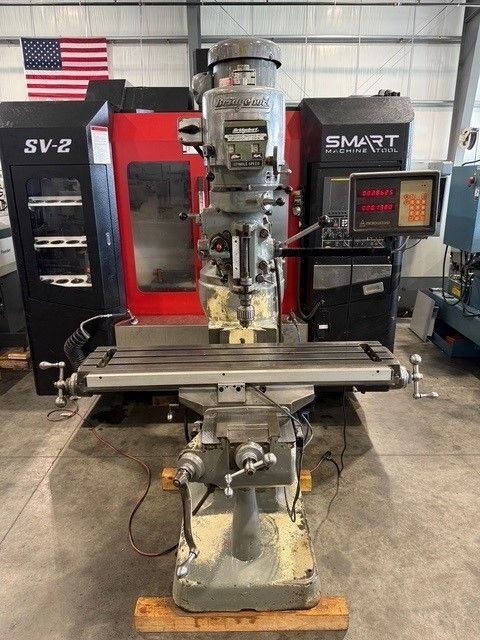

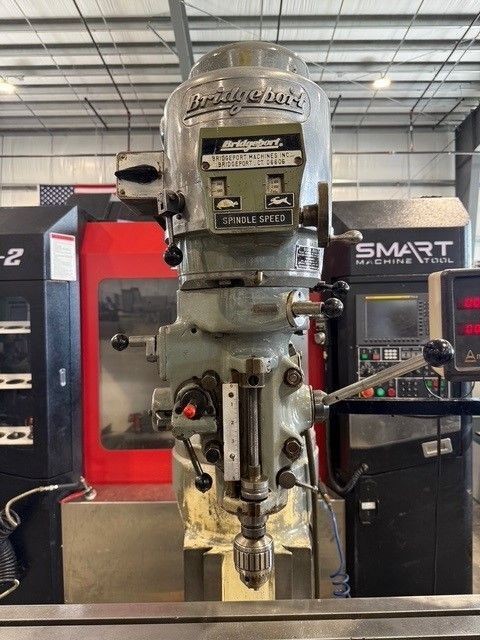

Bridgeport Series 1 Vertical Milling Machine 1978’ DRO USA #7703

body header header img header h1 hr p h5 p, p p, p , > div, > div img Bridgeport Series 1 Vertical Milling Machine 1978’ DRO USA Bridgeport Series 1 Vertical Milling Machine 1978’ DRO USA Overview: Type: Milling Machines Brand: BRIDGEPORT Model: SERIES 1 Year: 1978 Stock 7703

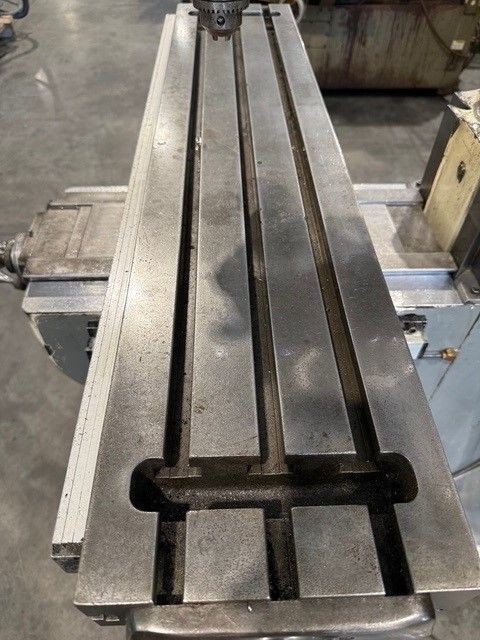

specifications: Spec Sheet: Bridgeport Series 1 Vertical Milling Machine 1978’ DRO USA Reference # 7703 Model # Series 1 Serial # 187656 Year of manufacture- 1978’ Table working surface- 9“ x 42” Number of t-slots- 3 Ranges- Longitudinal- 26” Cross- 11.5” Vertical, knee- 16” Quill-5” Maximum/Minimum distance, spindle nose to top of table- 18.5"/2.5" Maximum/Minimum distance, centerline of spindle to face of column- 18.75"/6.75" Ram travel- 12” Head tilt, left & right- 90 degrees Head tilt, front to rear, each way- 45 degrees Turret rotation- 360 degrees (3) Power quill feeds- - , , I.P.R. Infinitely variable spindle speeds, two ranges- 60-4,200 R.P.M Spindle taper- R-8 Maximum collet capacity- ¾” equipped with: ANILAM 2 Axis DRO Digital Read Out Chrome ways One-shot lubrication system 2 H.P. 3/60/230-460 volt spindle drive motor and electrical controls Machine is wired for 230 volt operation. Machine weight- 2000 Lbs. Machine dimensions- 64” L x 57” w x 83’’ H Machine location- F.O.B. Sarasota, Florida
