ISX X15 Liner Press Installer Tool 6434 Sleeve Height and Counter Bore Gauge

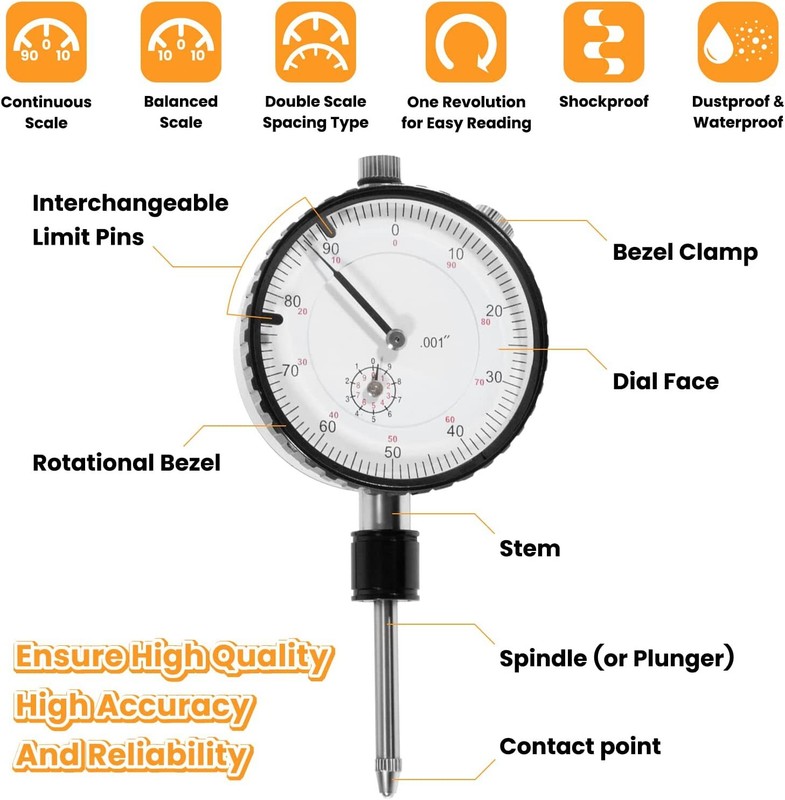

6434 Sleeve Height and Counter Bore Gauge + 3164606 Cylinder Liner Press Installer Tool for Cummins ISX X15 Perfect Design Lug back with 1/4 hole. The rotatable bezel with clamp for easy zero set. The adjustable markers provide reference points for all your measurements. The limit markers can be moved without interfering with the clamp. Superior

Material Premium grade hard stainless steel rack, stem, spindle and contact point, jeweled bearings for high sensitivity and accuracy. Hard coated crystal dial face for scratch resistance with anti-glare finish. Waterproof, dustproof and shockproof for long-lasting reliability. Great Compatibility Pointed contact for cylinder sleeve height. Flat end contact for counterbore depth. No tools required. Just replace the contact by hand. 6434 Sleeve Height and Counter Bore Gauge Fits for All Diesel Engines, Range: 0-1.00" Graduation: 0.001" Reading: 0-100 Application – This kit universal fits for all diesel engines. Range: 1.00 inch. Graduations: inch. Reading: 0-100.

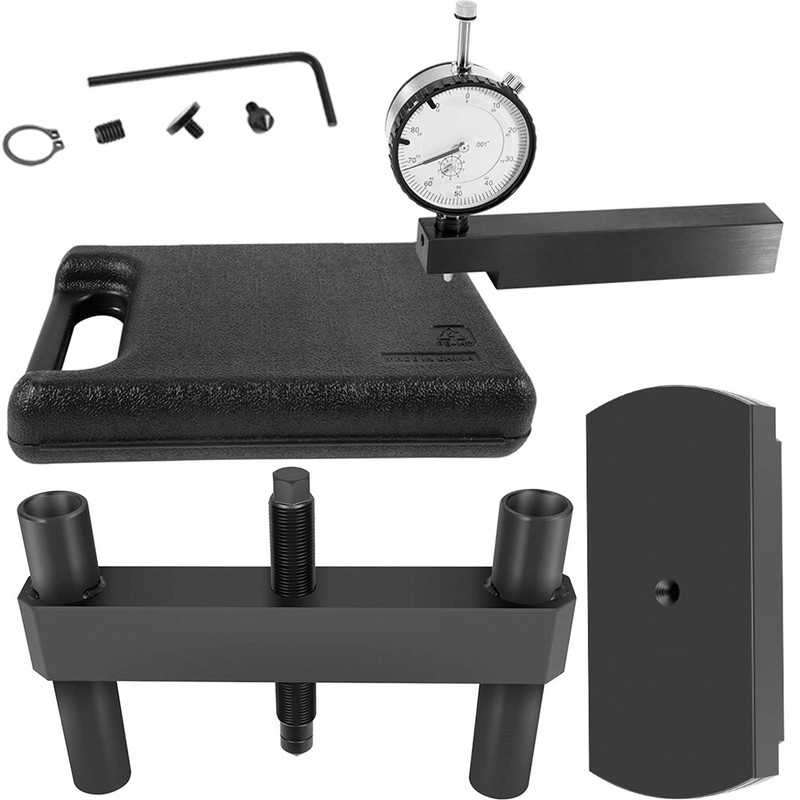

Material – It is made of special high quality steel and aluminum alloy, hard coated crystal dial face for scratch & corrosion resistance, which reduces the weight of the product and has strong corrosion resistance, wear resistance and durability. Minimize measurement errors and make the measurement results more accurate. Quick measurement steps – Cylinder sleeve height using pointed contact; Counter bore depth using flat end contact; Top dead center; Piston-to-deck height; Valve protrusion; Easy reading around entire bore. Package Includes – 4374-Dial Indicator, 4375-Base, 4377-Flat Contact Point, 4378-Pointed Contact Point, Retaining Ring, Hex Wrench & Carrying Case. Several different ends are included in kit for different liner setups. Designed to help you get the job right and meet your specific measurement needs. 3164606 Cylinder Liner Press Installer Professional Cylinder Liner Press Installer Tool. This Cylinder Liner Press Installer Tool will be an Indispensable helper when install antipolishing rings. Directly replace for: Part , ST-269. Supersedes 3162461. Install your antipolishing rings easily and save your time & money. instruction 1. Position the antipolishing ring on the top of the cylinder liner counterbore. Align ring so it sitssquarely on top of the counterbore. 2. Install the cylinder liner puller plate, in the center of the antipolishing ring. 3. Install the cylinder liner puller plate with the bottom facing up for proper seating and alignment. 4. Install the cylinder liner installation tool, Part Number 3164606, over the antipolishing ring andpuller plate. 5. Thread the installation tool down slowly, pressing the antipolishing ring into the liner counterbore. 6. If the antipolishing ring severely misaligns while pressing it into place, stop the installation processand inspect for damage. 7. If both the liner and antipolising ring are undamaged, repeat the above steps. Superior

Material Made of high quality solid steel with black anodizing, and application of precise mechanical design, sturdy and durable, impact-resistant, corrosion-resistant. Superior

Material Made of high quality solid steel with black anodizing, and application of precise mechanical design, sturdy and durable, impact-resistant, corrosion-resistant. Superior

Material Made of high quality solid steel with black anodizing, and application of precise mechanical design, sturdy and durable, impact-resistant, corrosion-resistant. Superior

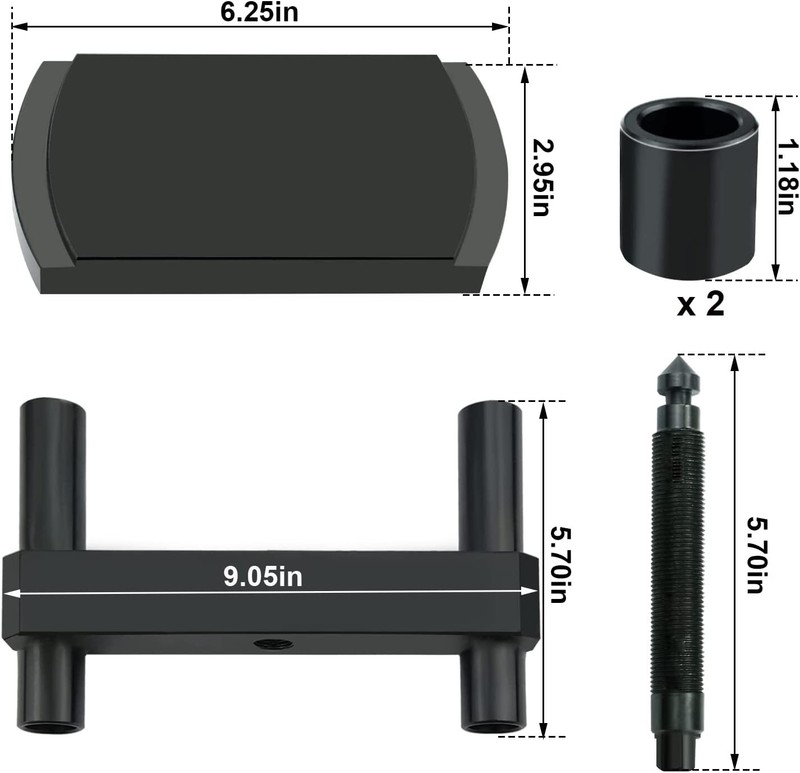

Material Made of high quality solid steel with black anodizing, and application of precise mechanical design, sturdy and durable, impact-resistant, corrosion-resistant. Function & Package includes Works on flat-top and grooved-top liners. This tool is designed to install antipolishing rings without damaging the liner and antipolising ring. Package includes 2 Spacers (*5395470). Cylinder Liner Installer Tool ×1. For Cummins ISX X15 Liner Press Installer Tool 3164606, ST-269, 3162461 3164606 Cylinder Liner Press 【Fitment】3164606 Cylinder Liner Press Installer fit for Cummins ISX X15 Liner Press. 【Replacement】for Cummins ISX X15 Liner Press replaces for part number 3164606, ST-269. Supersedes 3162461. 【Function】This isx x15 liner press installer tool works on flat-top and grooved-top liners. This 3164606 liner press tool is designed to install antipolishing rings without damaging the liner and antipolising ring. 【Superior Material】Made of high quality solid steel with black anodizing, and application of precise mechanical design, sturdy and durable, impact-resistant, corrosion-resistant. Kit includes 2 Spacers (*5395470). Cylinder Liner Installer Tool ×1.
