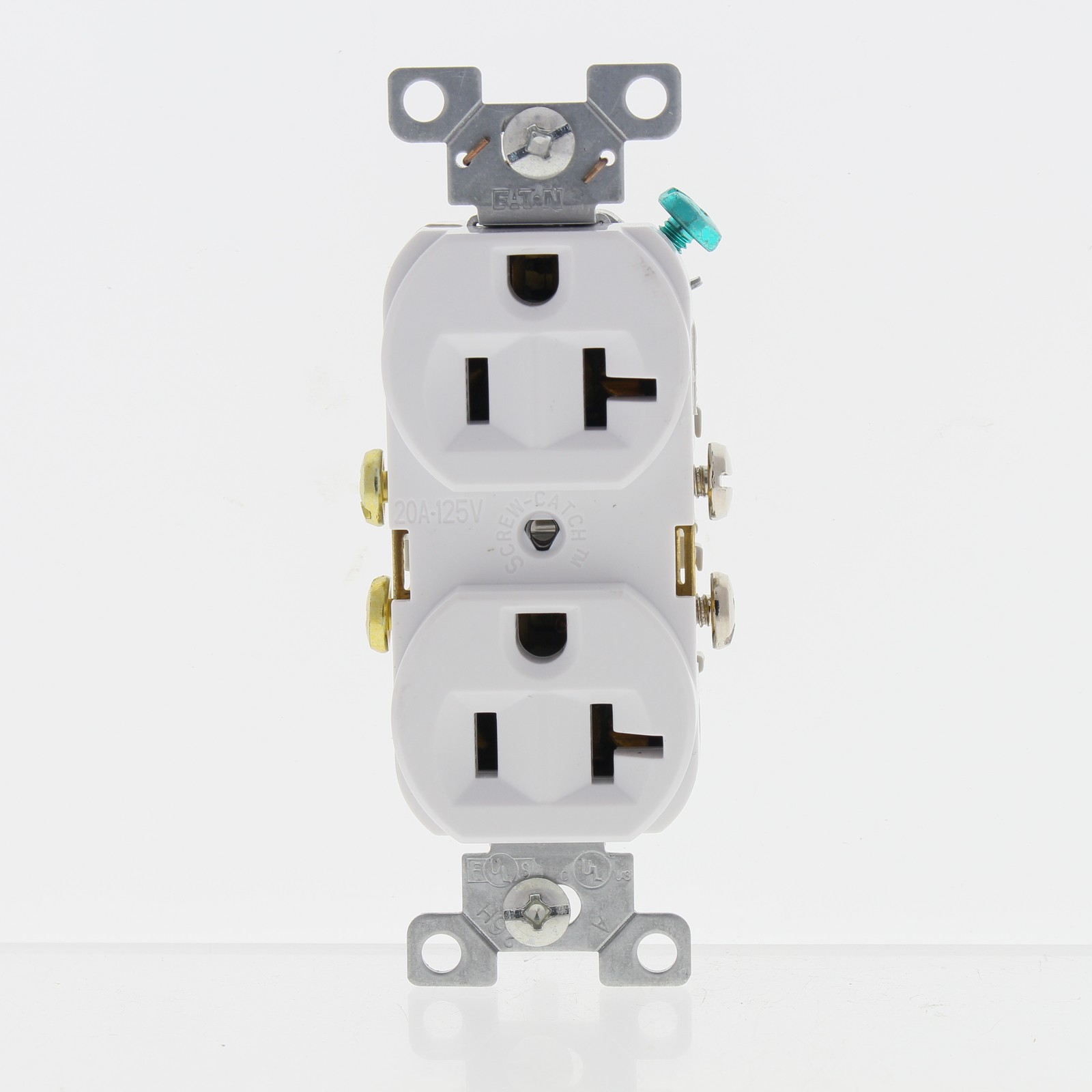

Eaton CR20W NEMA 5-20R 20A Duplex Outlet Receptacles (10 Pack)
This listing includes a 10-pack of Eaton CR20W commercial-grade duplex outlet receptacles with a NEMA 5-20R configuration and 20A rating. Condition is New. It’s a practical option for replacing or stocking standard duplex receptacles in home or light commercial settings. Free Shipping is included with the purchase. For compatibility details, included hardware, packaging contents, and any installation requirements, check the listing for details.
| Location | Jamestown US |
| Shipping | Free shipping (check listing for details) |
| Seller |
frwoodworking
99.8% positive · 208431 feedback
|
| Listing | FixedPrice · Active |
| Start time | 2026-02-18T21:30:51.000Z |
| Brand | Eaton |
| Operation Method | Outlet |
| Application | Electrical Wiring, Home/Garden, Commercial, Outlet |
| Port Type | Power |
| Plug Type | B |
| Current Type | AC |
| Material | Thermoplastic |
| Type | Duplex Receptacle |
| Maximum Amperage | 20 A |
| Finish | White |
| Current Rating | 11-20 A, 16-20 A, 16-30 A |
| Voltage | 125 V |
| Model | CR20 |
| MPN | CR20W |
| Outlet Configuration | Duplex |
| Mounting Style | Flush |
| Outlet Style | Double |
| Number of Gangs | 1 |
| Number of Ports | 2 |
| Number of Outlets | 2 |
| Number of Switches | 0 |
| Number of Throws | 0 |
| Number of Poles | 2 |
| Color | White |
| Number of Phases | 1 |
| Resistance Properties | Impact Resistant |
| Plate Design | Duplex Outlet |
| Orientation | Horizontal/Vertical |
| Protection Device | Not Applicable/Not Available |
| Country of Origin | Unknown |
| Condition Description | New (Old Stock) |
| Material Type | Nylon |
| Additional Features | Straight Blade |
| Amperage | 20A |
| Device Type | Duplex Receptacle |
| Grade | Commercial Specification Grade |
| Ground | Self-Grounding Clip & Grounding Screw |
| Lot Quantity | 10 |
| NEMA Number | 5-20R |
| Phase | 1 Phase |
| Poles | 2 |
| Terminal Type(s) | Side Wired |
| Wires | 3 |
| Country/Region of Manufacture | Unknown |
Product Details Quantity in Lot: 10 Brand: Eaton Part Number: CR20W Color: White Type: Duplex Receptacle Phase (if applicable) : 1 Phase Poles: 2 Wires: 3 NEMA Number: 5-20R Amperage: 20A Voltage: 125VAC Grade: Commercial Specification Grade Terminal Type(s): Side Wired Ground: Self-Grounding Clip & Grounding Screw 10 Eaton CR20W white duplex commercial receptacles. Commercial Specification Grade, NEMA 5-20R, 2-pole, 3-wire, grounding, side wired (#14-#10 AWG), rated 20A 125V. Bulk packed loose with no individual packaging; as a result some may have minor dings. Features include: Excellent plug blade retention provided by 0.030" 2-leaf brass line contacts (3-leaf neutral) and 0.030" brass ground Sturdy compact design meets the demands of commercial
specification grade performance 0.040" galvanized steel, wrap-around yoke mounting strap for superior assembly security Longer, wider strap provides more contact area to wall board, virtually eliminating floating installationslHigh impact and chemical resistant nylon face Screw-Catch feature speeds mounting of wallplates Automatic grounding system eliminates need for bonding jumper in grounded metal enclosures; it provides redundant measure of ground continuity when a jumper is used This is New Old Stock and is returnable for any reason. (SKU # EATCR20W-10PK; Weight: 1.6000 lbs.)
